Electricity problems are a common occurrence for property owners. These electricity problems can start small but become bigger and more damaging later on. These electricity problems also become safety hazards which can lead to issues with compliance with electrical safety regulations and even put the residents in danger.
One of the most common yet understated problems in households and buildings is the issue of reverse polarity. Reverse polarity issues can start out small but can lead to an array of other electric problems and can even lead to electrical system failure.
In this blog, we will dive deep into the issue of reverse polarity, how it occurs, and how you can deal with it effectively to protect yourself not only from legal issues but to also protect your residents.
What is Reverse Polarity?
Reverse polarity is the incorrect connection of live and neutral wires in electrical circuitry. In the UK, live wire is brown, neutral is blue, and earth wire is green and yellow. If a circuit is wired correctly, current flows safely from the live wire to neutral. But if polarity were reversed, current would flow in the opposite direction, giving rise to potential dangers and making appliances malfunction.
For example, you can encounter a casing of the appliance that could become live which would pose an electric shock risk. Reverse polarity occurs mostly when wiring is improperly done during the installation or repair of an installation. Conducting thorough periodic inspections and adherence to electrical wiring regulations can help prevent these issues.
Identifying the Signs of Reverse Polarity
Reverse polarity can manifest through several signs that are easy to identify with the right tools. One of the most common symptoms is an appliance whose performance is erratic even as the power is on. Other sources might make strange noises or indicate error codes or temperatures above normal levels.
A circuit tester would provide a quick answer to whether the live and neutral are installed correctly, and blink or dim lights may give clues as to reverse polarity. Not least of all, better be safe than sorry by regularly checking your outlets; more so after renovations or DIY electrical work.
Is Reverse Polarity Dangerous?
Reverse polarity is a significant threat to your safety and the integrity of the structure. Live and neutral wires are reversed, and live current can energize parts of appliances that should only be neutral, as is the case in metallic casings. This makes it very dangerous for electric shock even when the appliance is in the off position.
Also, reverse polarity bypasses internal safety features like fuses or circuit breakers, which tend to increase the risk of electrical fires. Furthermore, prolonged exposure to reverse polarity damages sensitive electronics due to irregular voltage or short circuits.
Regular inspections and the use of such tools as socket testers would create early identification of some issues and then resolve them. Hiring a qualified electrician for repairs guarantees that the problem has been rectified to UK safety regulations.
A Closer Look at Reversed Polarity Situations
Most of the time, reverse polarity occurs because of human mistakes while repairing or wiring an electric machine. For instance, live and neutral wires are interchanged in a socket, switch, or light fixture, and this is the reason that all these stop functioning the way they should. This type of fault is more common in older houses where the new wiring is in bad shape and much older than the current installation standards.
Depending on which type of appliance has been connected, it could produce different effects due to reversed polarity. Metal-bodied appliances could become dangerous and energise a live current. Some electronic appliances might refuse to perform irregularly or may fail much earlier than they usually would or might even get damaged permanently.
The effects of reversed polarity can vary depending on the appliance or device in use. For instance:
- Metal Casings: Certain appliances with metal casings could become hazardous if energised by live current.
- Erratic Operation: Electrical devices might operate erratically, fail prematurely, or even become irreparably damaged.
- Circuit Protection Failure: Circuit breakers and residual current devices (RCDs) rely on proper wiring to detect and respond to faults. Reversed polarity may compromise their function.
It is not only house owners who need to worry about reverse polarity concerning circuit protection devices, but also circuit breakers and residual current devices that rely on the correct wiring. With polarity reversed, the operation of these safety systems is compromised and therefore is not possible under such situations; most hazardous fire conditions may occur or even result in bodily injury.
Common Statistics:
- 10% of older UK homes may have outdated or faulty wiring.
- Reverse polarity is found in 1 out of 50 homes inspected annually by electricians.
Follow British Standard BS 7671, electrical installations for wiring to avoid the answer to reversed polarity. It would only be advisable to hire certified electrician professionals for inspection, repair, termination and installations to safeguard a home and its appliances against the hazards of reverse polarity.
Protecting Your Electrical System from Reverse Polarity
Protecting your electrical system starts with following best practices for installation and maintenance. Only use certified electrical components that meet UK safety standards, such as BS 1363 sockets and plugs. If undertaking any DIY electrical work, adhere strictly to the UK’s wiring colour codes: brown for live, blue for neutral, and green and yellow for earth.

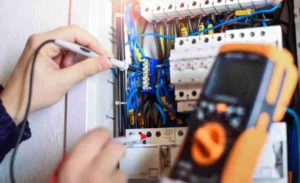

It is essential to inspect your electrical system regularly. Check outlets, switches and appliances for signs of damage or malfunction. Tools such as circuit testers and multimeters can help identify reverse polarity and other wiring faults. If you suspect a problem, turn off the circuit and consult an electrician. Investing in professional services and regular maintenance will ensure long-term safety and compliance with UK Electrical Regulations.
How to Detect Reverse Polarity Issues
Reverse polarity problems are easy to diagnose with the right tools. A socket tester is a useful tool to help diagnose electrical connection problems in plugs. By inserting the tester into the outlet, you can quickly determine if the live and neutral wires are connected properly.
A multimeter is another useful tool that allows you to measure voltage levels and verify polarity. If the test shows reverse polarity, stop using the outlet and contact an electrician. Early detection is essential to preventing security risks and protecting your devices.
Detecting reverse polarity issues is straightforward with the right tools:
- Socket Testers: Plug the tester into an outlet to determine if the wiring is correct.
- Multimeters: Use these to measure voltage levels and confirm polarity.
Tips for Effective Detection:
- Test all outlets in newly renovated areas.
- Perform checks during annual safety inspections.
- Use visual guides to verify wiring colours and placement.
If reverse polarity is detected, stop using the outlet and contact an electrician. Early detection prevents safety hazards and appliance damage.
Non-Contact Voltage Detectors – How To Use One
A non-contact voltage tester is a valuable tool for safely identifying electrical problems, including reverse polarity. This tool works by detecting the presence of voltage without direct contact with a wire or terminal which makes it ideal for identifying live wires in sockets, switches, or electrical panels.
The probe is then held close to the live and neutral terminals of the socket. If the tool displays voltage on both terminals, the polarity is reversed. It is very useful in situations where direct access to the phone is not possible or is damaged.
Steps to Use a Non-Contact Voltage Detector:
- Test the Detector: Verify it works by testing it on a known live source.
- Identify Terminals: Hold the detector near live and neutral terminals.
- Confirm Results: If live voltage is detected on both terminals, reverse polarity is likely.
Benefits:
- Easy to use.
- Eliminates direct contact with wiring.
- Suitable for both professionals and DIY users.
Non-contact voltage detectors are versatile and straightforward, making them suitable for both professionals and homeowners. They’re particularly useful in scenarios where accessing wiring directly is impractical or hazardous.
How to Check Receptacles for Reverse Polarity
Checking receptacles for reverse polarity requires a few basic steps. Begin by switching off the circuit breaker supplying power to the outlet. Use a socket tester to inspect the receptacle by plugging it in and observing the indicator lights. These lights will show whether the wiring is correct or if reverse polarity is present.
If reverse polarity is detected, avoid using the outlet until it has been repaired by a qualified electrician. Regularly checking receptacles, particularly after renovations or electrical work, ensures your home remains safe and compliant with UK wiring regulations.
Can Reverse Polarity Damage My Appliances?
Reverse polarity can cause serious damage to devices, especially those with sensitive electronic components. Incorrect wiring sends current through parts of the device not designed to handle it, potentially leading to overheating, short circuits, or permanent failure.
Appliances with surge protection or internal safety mechanisms may also fail under these conditions. To prevent costly repairs or replacements, address reverse polarity issues promptly and avoid using affected outlets.
Notable Statistics:
- Electronics in reverse-polarity circuits may fail 30% faster than usual.
- Costs for repairs due to reverse polarity average £200–£500 per incident.
Address reverse polarity issues promptly to prevent costly repairs or replacements.
How to Correct an Outlet with Reverse Polarity
Correcting an outlet with reverse polarity involves rewiring it properly.
- Turn Off Power: Shut off the circuit breaker supplying power to the outlet.
- Verify De-Energisation: Use a voltage tester to ensure the outlet is not live.
- Expose Wiring: Remove the outlet cover and unscrew the outlet.
- Rewire Correctly: Identify the live, neutral, and earth wires, and reconnect them to their respective terminals (live to brass, neutral to silver, and earth to green/yellow).
- Test the Outlet: After reassembly, restore power and use a socket tester to confirm the repair.
Understanding How Outlets and Light Fixtures Work
Outlets and light fixtures are essential components of any electrical system. They function by connecting live and neutral wires to create a complete circuit, enabling devices to operate. UK outlets also incorporate an earth wire for added safety, which channels excess current away in the event of a fault.
Key Components:
- Live Wire (Brown): Supplies current to the device.
- Neutral Wire (Blue): Completes the circuit.
- Earth Wire (Green/Yellow): Provides safety grounding.
One point of vulnerability that light fixtures have is their additional connections for switches or dimmers. So, when reverse polarity hits, these extra connections are disrupted, making the system unsafe. To understand more, you can look at these diagrams, which show wiring errors that you need to look out for.
Switching Wires on a Push-In Connector
Switching wires on a push-in connector is a straightforward process, but it must be done with caution. Start by turning off the circuit breaker and confirming the circuit is de-energised with a voltage tester. Gently press the release mechanism on the connector to remove the wire. Insert the correct wire into the appropriate slot, ensuring a secure connection. Test the circuit after reassembly to verify it’s functioning correctly.
What to Do Next?
If you’ve identified reverse polarity in your home, take immediate action to address the issue. Disconnect any affected appliances and avoid using the faulty outlet or circuit. Contact a certified electrician to inspect your electrical system and make the necessary repairs. Consider scheduling a full electrical safety inspection to identify any other potential problems and ensure compliance with UK regulations.
Investing in regular maintenance and using high-quality testing tools can prevent reverse polarity and other wiring issues. Educate yourself on electrical safety to protect your home and family.
Summary Table:
| Issue | Detection Method | Solution |
| Reverse Polarity | Socket Tester | Rewire outlet |
| Circuit Damage | Multimeter Test | Replace damaged components |
| Appliance Failure | Professional Diagnosis | Repair or replace devices |
Conclusion
Reverse polarity is a serious electrical problem that can compromise safety and damage appliances. By understanding the dangers of polarity reversal and recognising when it’s about to occur, you can take pre-emptive steps to get ahead of any arising electrical issues.
Regular inspections, compliance with British Electrical Standards, and consultation with qualified professionals are essential to maintaining a safe and efficient electrical system. Prioritise safety and ensure your home remains free of electrical hazards.
